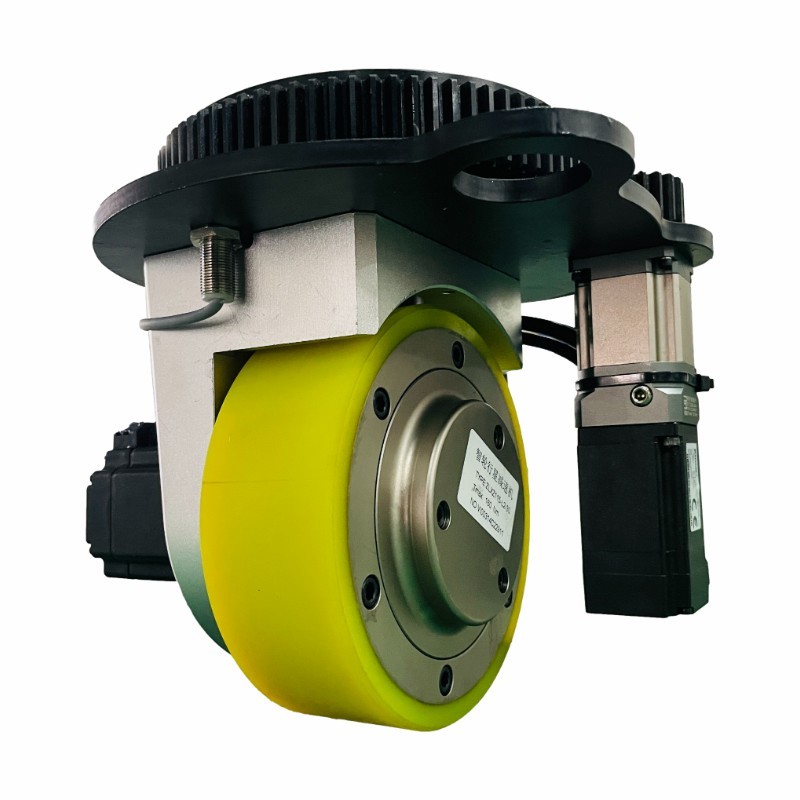

400KG Motor Drive Wheel

Rated load 400KG, single support drive structure, flexible steering, smaller rotation diameter.

Product number:ZL-H220

Category: Horizontal Drive Wheel Series

隐藏域元素占位

Message

Back to list

Product description

small size, light weight, high power density, high speed, fast response, etc. They can play an important role in a variety of situations, such as drones, robots, smart homes, medical devices, and the automotive industry to name a few. In addition, the small motor drive wheel also has the characteristics of low noise, low vibration, high efficiency and easy control, making it widely used in many fields.

Technical Parameter
Model	ZL-H220
Gearbox	Level 1-2 planetary
Speed ratio	I	7-120
Wheel diameter	mm	160
Fastest speed	m/min	20-200
Temperature	℃	-10 to +55
Weight	KG	about 22
Traction motor technical parameter
Motor type	Servo / Brushless
Rated power	W	100 - 1000
Rated voltage	V	DC24-110V / AC220-380V
Rated speed	rpm/min	3000
Rated torque	N.m	0.2 - 3.18
Steering motor technical parameter
Motor type	Servo / Brushless
Rated power	W	60 - 200
Rated voltage	V	DC24-110V / AC220-380V
Rated speed	rpm/min	3000
Rated torque	N.m	0.16 - 0.64
Steering reducer speed ratio	I	35-120
